Barbed Wire With Sharp Edge on Various Fences for High Security Barrier

Barbed wire, also known as bob wire, is the most important component of barbed wire fence system. It can be used individually to form the barbed wire fence, and it also can be attached onto various fences, such as chain link fence, welded wire mesh fence, expanded mesh fence or palisade fence for high level security barrier. They are widely used for prison fencing, airport fencing, farm fencing, ranch fencing, residence fencing, large construction site fencing and so on.

Contact Now

Feature

Sharp edge frightens intruders and thieves.
High stability, rigidity, and tensile strength to prevent cutting or destroying.
Anti-acid and alkali.
Harsh environment resistance.
Corrosion and rust resistance.
Available to combine with other fences for high level security barrier.
Convenient installation and uninstallation.
Durable and long service life.

Specification

Material: Carbon steel, aluminum alloy, stainless steel.
Surface treatment: Galvanized, aluminized or PVC coated.
Common colors of PVC are green, yellow, blue, red, white, and black.
Line wire
- Tensile strength: 1235 N/m².
- Galvanization: 275 g/m².
Barb wire
- Tensile strength: 350 N/m².
- Galvanization: 240 g/m².
Strand structure
- Single strand barbed wire: formed with one line wire and many barbs.
- Double strand barbed wire: formed with two line wires and many barbs.
Barb structure
- Single barb (2-point barbed wire).
- Double barbs (4-point barbed wire).
Twist style
- Traditional twist: barbs through two wires first, then wires are twisted.
- Reverse twist: two wires are twisted first, then barbs fastened onto wires.
Packaging
- Pallet package for easy loading.
- Bulk package for saving space.
Using method
- Used individually to form barbed wire fence.

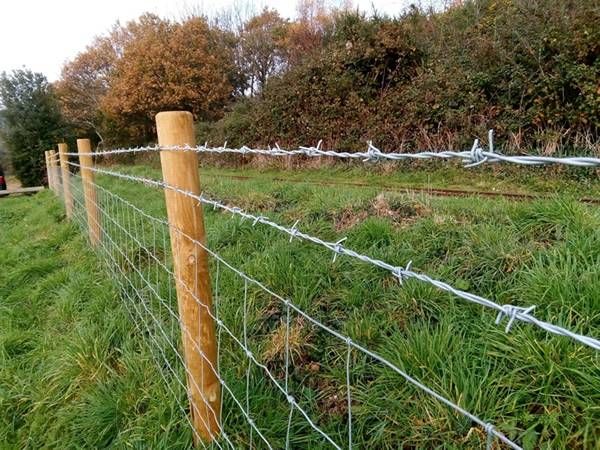

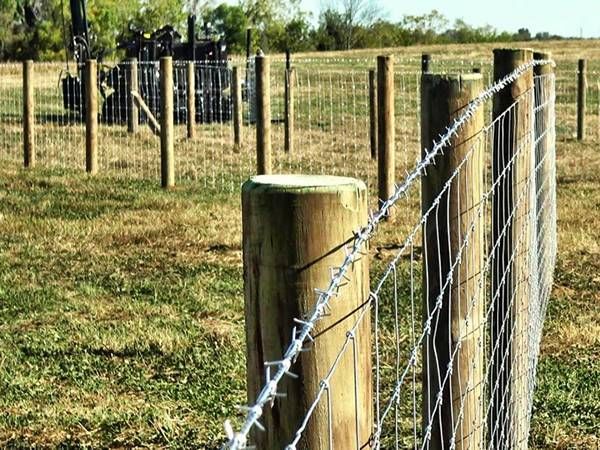

- Attached onto various fences for high level security fence barrier, such as chain link fence, welded wire mesh fence, expanded mesh fence or palisade fence.

Table 1: Standard Sizes and Constructions for Barbed Wire
Design Number	Size, Steel Wire Gauge	Diameter of Coated Wire, in. (mm)	Number of Barb Points	Spacing of Barbs, in. (mm)	Diameter of Barbs, Steel Wire Gauge	Shape of Barbs
12-4-3-14R	12.5	0.099 (2.51)	4	3 (76)	14	round
12-4-3-12R	12.5	0.099 (2.51)	4	3 (76)	12	round
12-2-4-12F	12.5	0.099 (2.51)	2	4 (102)	12.5	flat
12-2-4-13F	12.5	0.099 (2.51)	2	4 (102)	13	flat
12-2-4-14R	12.5	0.099 (2.51)	2	4 (102)	14	round
12-2-5-12F	12.5	0.099 (2.51)	2	5 (127)	12.5	flat
12-4-5-14R	12.5	0.099 (2.51)	2	5 (127)	14	round
12-4-5-14H	12.5	0.099 (2.51)	4	5 (127)	14	half-round
12-4-5-14R	12.5	0.099 (2.51)	4	5 (127)	14	round
13-2-4-14R	13.5	0.086 (2.18)	2	4 (102)	14	round
13-4-5-14R	13.5	0.086 (2.18)	4	5 (127)	14	round
14-2-4-14F	14	0.080 (2.03)	2	4 (102)	14	flat
14-2-5-14F	14	0.080 (2.03)	2	5 (127)	14	flat
14-4-3-14F	14	0.080 (2.03)	4	3 (76)	14	flat
14-4-5-14F	14	0.080 (2.03)	4	5 (127)	14	flat
14-2-5-14R	14	0.080 (2.03)	2	5 (127)	14	round
15-4-5-14R	14	0.080 (2.03)	4	5 (127)	14	round
15-2-5-13F	15.5	0.067 (1.70)	2	5 (127)	13.75	flat
15-2-5-14R	15.5	0.067 (1.70)	2	5 (127)	14	round
15-4-5-16R	15.5	0.067 (1.70)	4	5 (127)	16.5	round

Table 2: Specifications of Concertina Barbed Wire
Item	Coil Diameter Before Stretching (mm)	Coil Diameter After Stretching (mm)	Spiral Turns Per Coil	Clips Per Spiral
CBWF-01	300	260	33	3
CBWF-02	450	400	54 or 55	3
CBWF-03	730	600	54 or 55	3
CBWF-04	730	620	54 or 55	5
CBWF-05	980	820	54 or 55	5
CBWF-06	980	850	54 or 55	7
CBWF-07	1250	1150	54 or 55	9

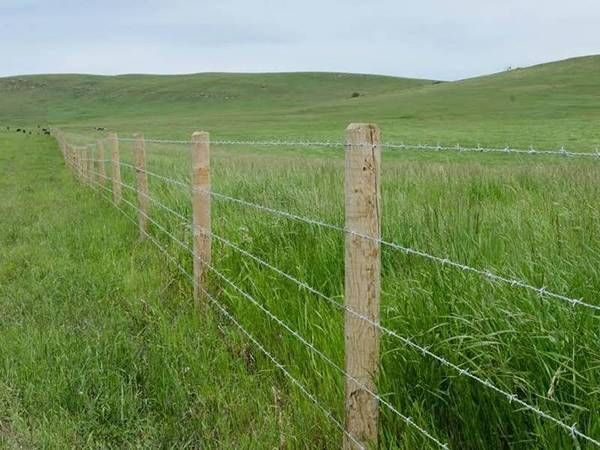

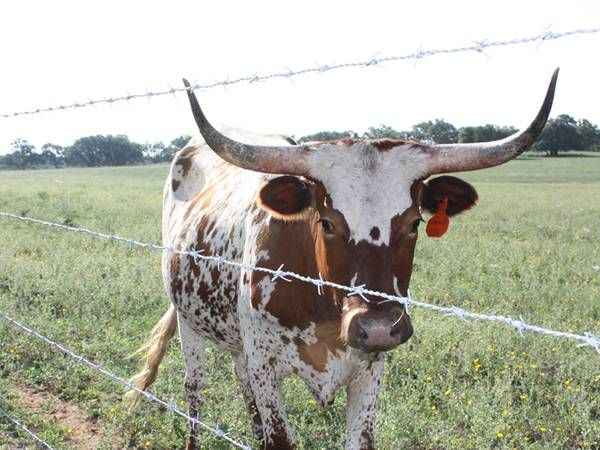

Application
