Stainless steel
Roofing nails are also known as clout nails, which have a variety of materials to adapt to different environments. They have different poles to accommodate different roof materials. All roofing nails have wide, flat or umbrella heads and short shanks. The pointed head of the roofing nail prevents the board from breaking when it is nailed into the board.
Available types

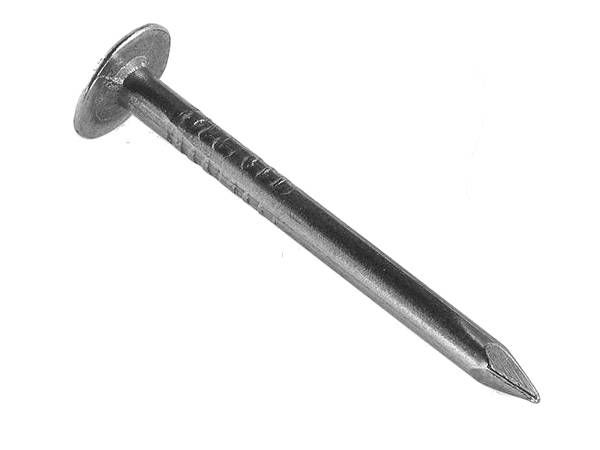

Stainless steel
Copper

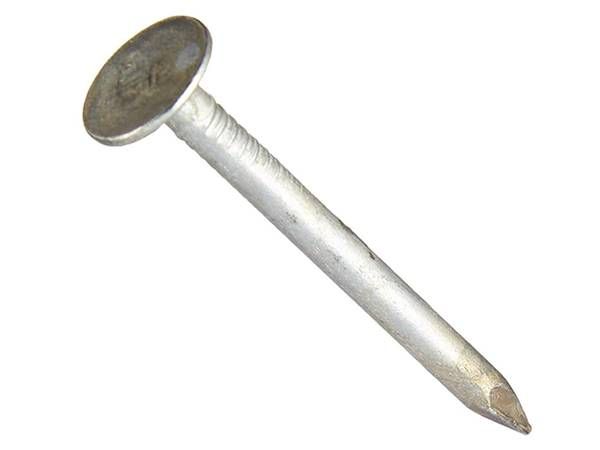

Aluminum

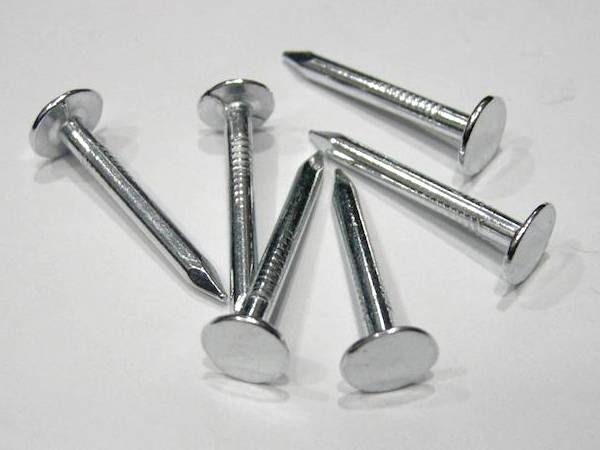

Galvanized
Specifications
Flat head

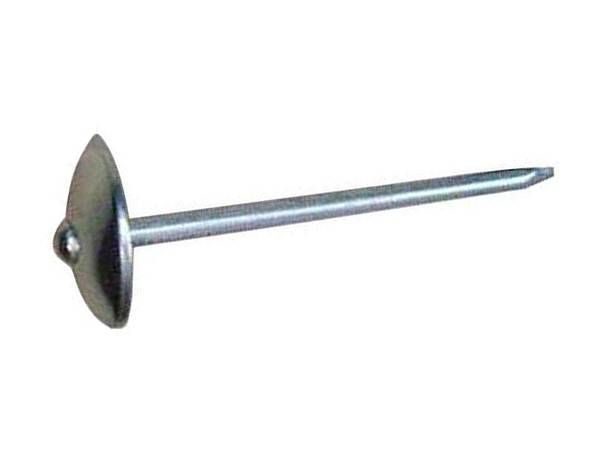

Umbrella head

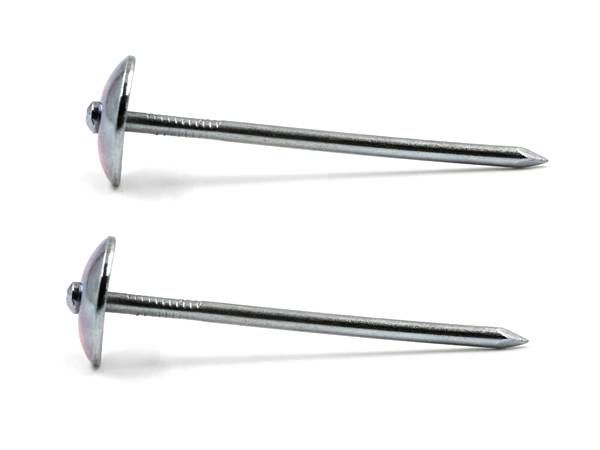

Smooth Shank

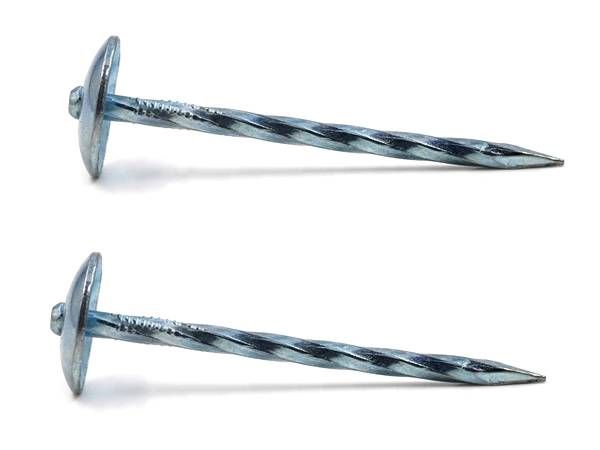

Twist shank
| Specification | Length (mm) | Shank Diameter (mm) | Head Diameter (mm) |
|---|---|---|---|
| BWG 8 × 2" | 50.8 | 4.19 | 20 |
| BWG 8 × 2-1/2" | 63.5 | 4.19 | 20 |
| BWG 8 × 3" | 76.2 | 4.19 | 20 |
| BWG 9 × 1-1/2" | 38.1 | 3.73 | 20 |
| BWG 9 × 1-3/4" | 44.5 | 3.73 | 20 |
| BWG 9 × 2" | 50.8 | 3.73 | 20 |
| BWG 9 × 2-1/2" | 63.5 | 3.73 | 20 |
| BWG 9 × 3" | 76.2 | 3.73 | 20 |
| BWG 10 × 1-3/4" | 44.5 | 3.37 | 20 |
| BWG 10 × 2" | 50.8 | 3.37 | 20 |
| BWG 10 × 2-1/2" | 63.5 | 3.37 | 20 |
| BWG 11 × 1-1/2" | 38.1 | 3.02 | 18 |
| BWG 11 × 1-3/4" | 44.5 | 3.02 | 18 |
| BWG 11 × 2" | 50.8 | 3.02 | 18 |
| BWG 11 × 2-1/2" | 63.5 | 3.02 | 18 |
| BWG 12 × 1-1/2" | 38.1 | 2.74 | 18 |
| BWG 12 × 1-3/4" | 44.5 | 2.74 | 18 |
| BWG 12 × 2" | 50.8 | 2.74 | 18 |
| BWG 13 × 1-3/4'' | 44.5 | 2.41 | 15 |
| BWG 13 × 2'' | 50.8 | 2.41 | 15 |
| BWG 13 × 2-1/2'' | 63.5 | 2.41 | 15 |
| BWG 13 × 3'' | 76.2 | 2.41 | 15 |
Details

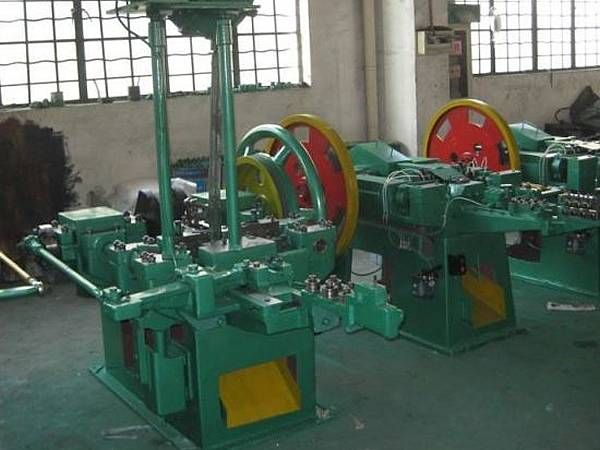

Roofing nails production line

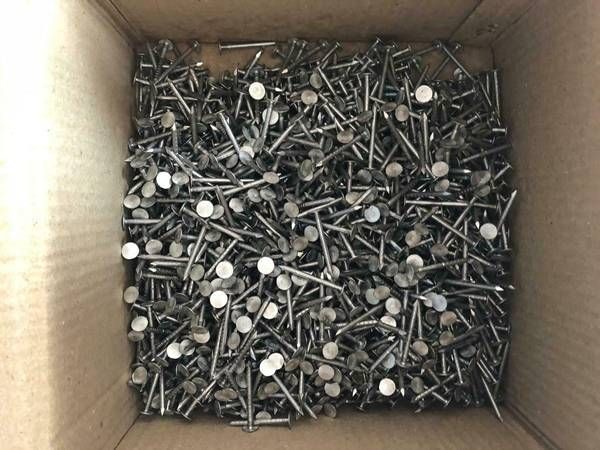

Some kinds of
Roofing nails packages.
Roofing nails loading
Applications
The roofing nails is specially used for nailing asbestos tile or asphalt felt. Gasket should be used under the nail cap to prevent leakage.

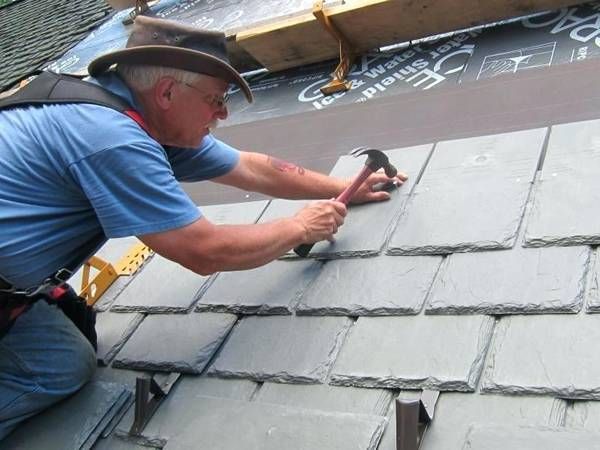

Fixing the asbestos tile with roofing nails

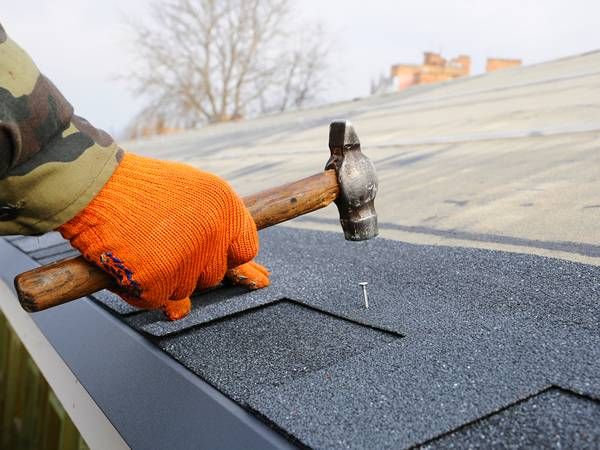

Fixing the asphalt felt with roofing nails
